Zotac Zbox Magnus 2025 Review
The ZOTAC ZBOX MAGNUS EN 2025 is a powerful mini PC that proves big performance can come in a tiny package. Powered by an Intel Core Ultra 7 255HX and a desktop-class RTX 5060 Ti 16GB GDDR7, it delivers true desktop-level gaming and editing performance in a compact 2.65-liter chassis.
With support for up to 96GB DDR5 RAM, dual PCIe Gen5 SSD slots, Thunderbolt 4, and WiFi 7, this tiny powerhouse is built for creators and gamers who want maximum power in minimal space.
Key Specifications & Features
- It features the powerful Intel Core Ultra 7 255HX 20 cores (8 performance cores and 12 efficiency cores) processor.
- It incorporates a dedicated desktop-class NVIDIA GeForce RTX 5060 Ti (16 GB GDDR7) GPU.
- Very compact form-factor: chassis volume ~2.65 litres.
- Upgradeable: Supports up to 96 GB DDR5 (2× SODIMM) and dual M.2 2280 slots (PCIe 5.0 + PCIe 4.0) for SSDs.

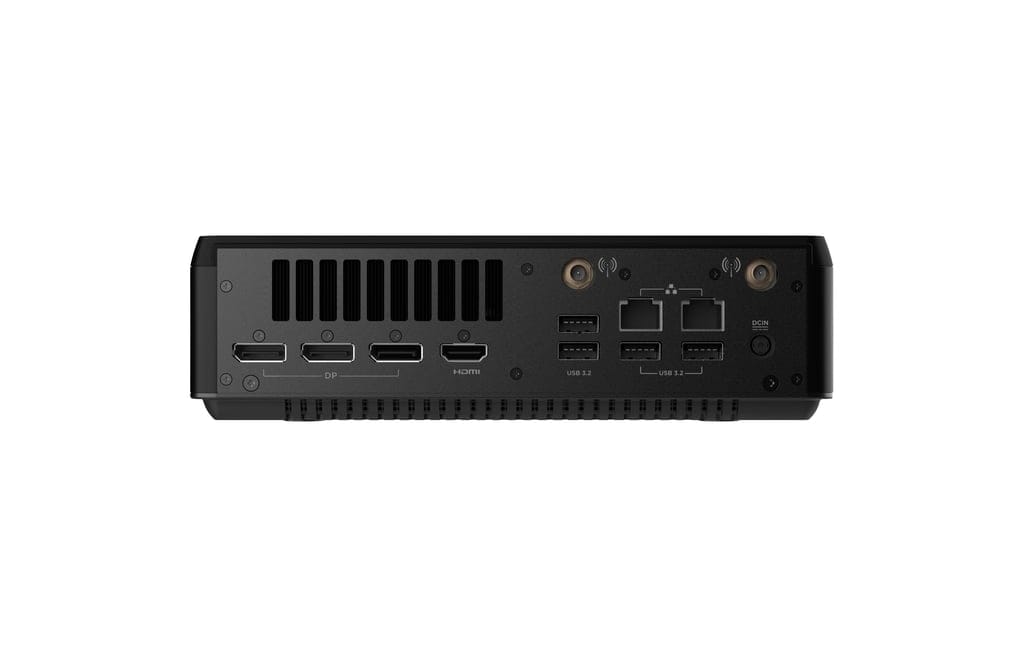

- Multi-port display outputs including DisplayPort 2.1b.
- Two Thunderbolt 4 ports.
- WiFi 7 + Bluetooth 5.4 support.
- Ethernet: 2.5 Gbps (and possibly dual 2.5Gb?) depending region.
What this means in practice
- Value: For high performance in minimal form-factor, this is compelling — but comparatively expensive vs DIY/desktop builds.
- Performance: With HX class CPU & RTX 5060 Ti, this mini-PC is absolutely capable of serious 1440p gaming & creative workloads (video editing, 3D render)
- Compact design: 2.65L means it will take up very little desk space or can be mounted behind a monitor. Good for small rooms or minimalist setups.
- Upgrade potential: Good that it supports high-capacity RAM and high-speed SSDs — meaning the platform isn’t totally locked down.
- Future-proofing: Features like WiFi7, Thunderbolt4, DisplayPort2.1b are higher-end and should serve well.
It it same rtx 5060 ti perfromance as desktop?
Yes —ZOTAC ZBOX MAGNus EN series (model EN275060TC) uses the desktop version of the NVIDIA GeForce RTX 5060 Ti 16 GB GPU (not a cut-down mobile variant)
What we know
- ZOTAC states that the Magnus EN275060TC features “DESKTOP CLASS GPU — GeForce RTX 5060 Ti 16 GB” in their marketing.
- Notebookcheck confirms: “Sporting a desktop variant with 16 GB of GDDR7 VRAM … the Zotac ZBOX Magnus EN also contains … an Nvidia GeForce RTX 5060 Ti desktop GPU” inside a 2.65L case.
So yes — the component is the “real” desktop-class GPU rather than a laptop-variant or heavily cut-back version.
⚠️ What “same performance” means (and what to check)
Even if the GPU is the desktop version, that doesn’t guarantee that its performance will exactly match the same card in a full-sized desktop PC. Some practical factors may reduce or affect performance:
- Cooling / Thermal Limits: If you’re using it in a hot, poorly-ventilated room, in a very small chassis (2.65L) could run warmer & it will go loud.
- Power Delivery / GPU Headroom: Desktop cards often are paired with power supplies and motherboards designed for maximum headroom. In the mini-PC, there might be slightly reduced power limits or conservative thermal/power settings to keep noise/heat acceptable.
- Comparative benchmarks: The RTX 5060 Ti is a strong card mid-range for 1440p gaming. In standard desktop reviews it yields very good results. But real‐world results in the compact PC may fall slightly short of the “ideal” desktop case.
Overall, the ZOTAC ZBOX MAGNUS EN 2025 is a perfect blend of performance and portability. It’s ideal for gamers, video editors, and professionals who want desktop-grade power without the bulk of a full tower PC.
While its compact size may limit upgrades and cooling headroom, its sleek design and strong specs make it one of the most impressive mini PCs of 2025 — proof that great things really do come in small packages.
For me
Yes, in terms of raw components the Magnus should deliver nearly the same class of performance as a desktop PC with the same GPU (RTX 5060 Ti 16 GB) if cooling/power are not severely compromised. However, you should be mindful that performance might be a little lower in certain scenarios (very long gaming sessions, hot environment, etc) compared to a big desktop tower with optimal cooling.
